CAT6 UTP - 23AWG 550MHz
Solid Bare Copper / CCA | PVC / LSZH | 50 Rolls MOQ
Product Overview
Our CAT6 UTP cables are engineered for high-performance Gigabit Ethernet networks. Featuring a cross filler to separate pairs and reduce crosstalk, providing reliable performance up to 550MHz. Available in Solid Bare Copper (BC) and CCA options.
| Conductor | 23AWG Solid BC / CCA |
|---|---|
| Filler | Cross Filler |
| Jacket | PVC 6.4±0.2 mm |
| Frequency | 550MHz |

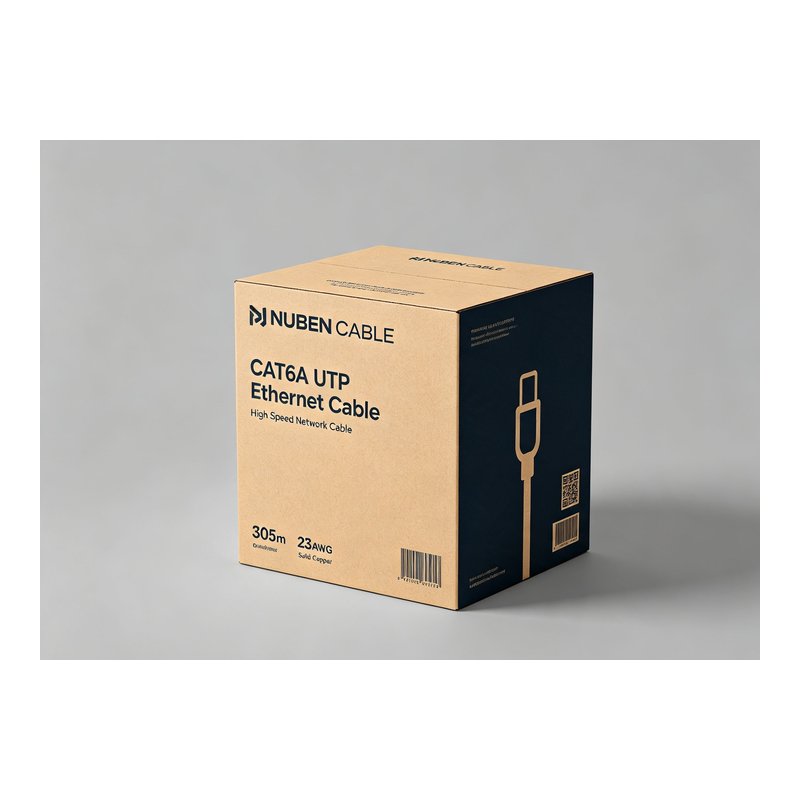

| Length | 305M / 1000ft Pull Box |
OEM Service - 50 Rolls MOQ
We offer BC and CCA options honestly. Tell us jacket color and length.
Whatsapp Factory →

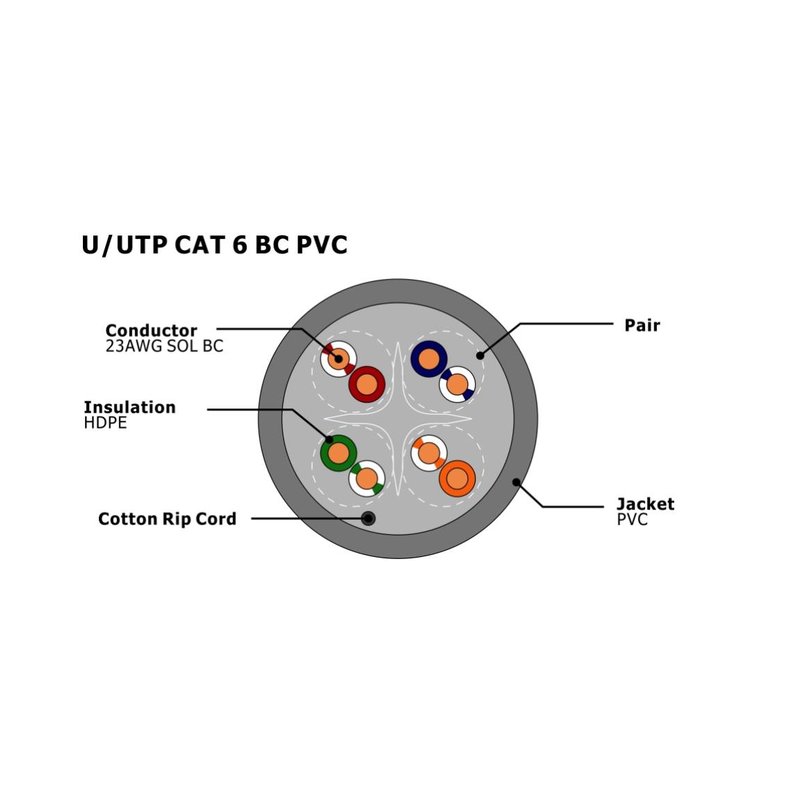

Construction
| Conductor | 23 AWG Solid Bare Copper |
|---|---|
| Pairs | 4 Pairs |
| Insulation | 1.02 mm HDPE |
| Insulation Colors | Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown |
| Filler | Cross Filler |
| Rip Cord | Cotton |
| Out Jacket | 6.4±0.2 mm PVC |
Electrical Characteristics
| Impedance | 1 - 250MHz 100±15 Ohms |
|---|---|
| Insulation Resistance | > 5000MΩ*KM |
| Dielectric strength | DC 2500V 2S |
| Max. Conductor DC Resistance 20°C | 8.4 Ohms/100m |
| Res. unbalance (%) | Max. 2.5 |
| Pair to Ground Capacitance Unbalance | 330 pF/100m |
| Transfer Impendance | Max 10 mOhms/m @100MHz |
| Installation temp. | -30 - 50°C |
| Operation temp. | -20 - 75°C |
