CAT5e UTP - 24AWG BC/CCA 305M
PVC / LSZH / CMR | 50 Rolls MOQ | Fluke Test Support
Product Overview
Our CAT5e UTP cables are designed for high-speed network connections in residential and commercial environments. Available in solid Bare Copper (BC) and Copper Clad Aluminum (CCA) options to meet different project budgets.
| Conductor | 24AWG Solid BC / CCA |
|---|---|
| Jacket | PVC CM / LSZH 5.2mm |

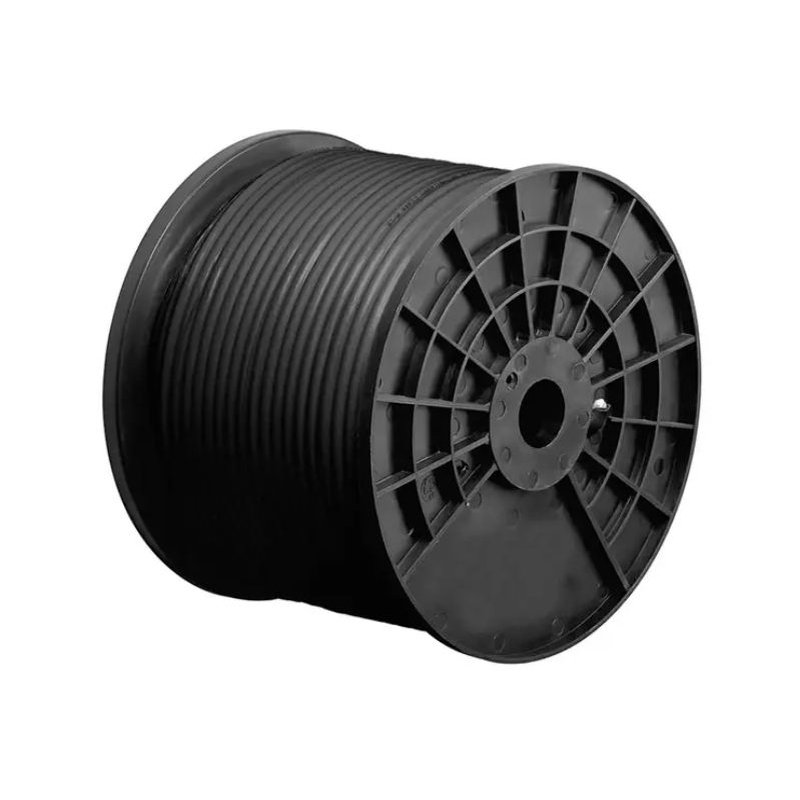

| Length | 305M / 1000ft Pull Box |
| Frequency | 100MHz / 100Mbps |
| Testing | Fluke Pass, 100% Test |
OEM Service - 50 Rolls MOQ
We offer BC and CCA options honestly. Tell us jacket color and length.
Whatsapp Factory →

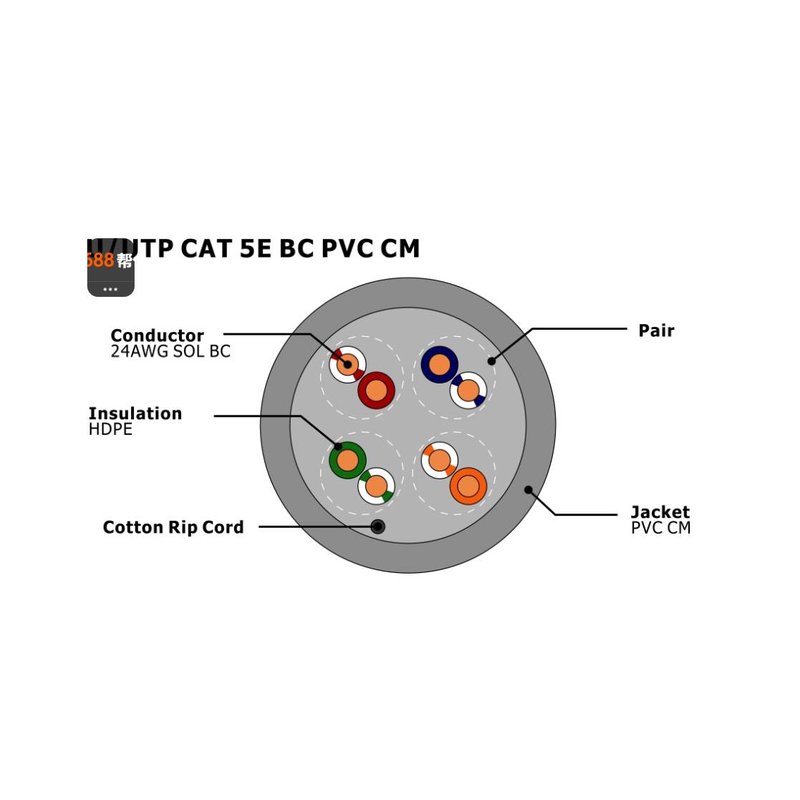

Construction
| Conductor | 24 AWG Solid Bare Copper |
|---|---|
| Pairs | 4 Pairs |
| Insulation | 0.91 mm HDPE |
| Insulation Colors | Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown |
| Rip Cord | Cotton |
| Out Jacket | 5.1±0.2 mm PVC CM |
Electrical Characteristics
| Impedance | 1 - 100MHz 100±15 Ohms |
|---|---|
| Insulation Resistance | > 5000MΩ*KM |
| Dielectric strength | DC 2500V 2S |
| Max. Conductor DC Resistance 20°C | 9.5 Ohms/100m |
| Res. unbalance (%) | Max. 2.5 |
| Pair to Ground Capacitance Unbalance | 330 pF/100m |
| Transfer Impendance | Max 10 mOhms/m @100MHz |
| Installation temp. | -30 - 50°C |
| Operation temp. | -20 - 75°C |
